• SECOND GEN. MULTI-FX AND AMP MODELLER
• Enhanced sound quality from cutting-edge tri-core DSP platform/ ESS® Sabre® AD/DA
• Upgraded effects library = 400+ effects! 100+ legendary pedal models, 87 amps, 68 cabs (inc. 20 classic Celestion® speaker IRs), new preamps, independent power amp sim.

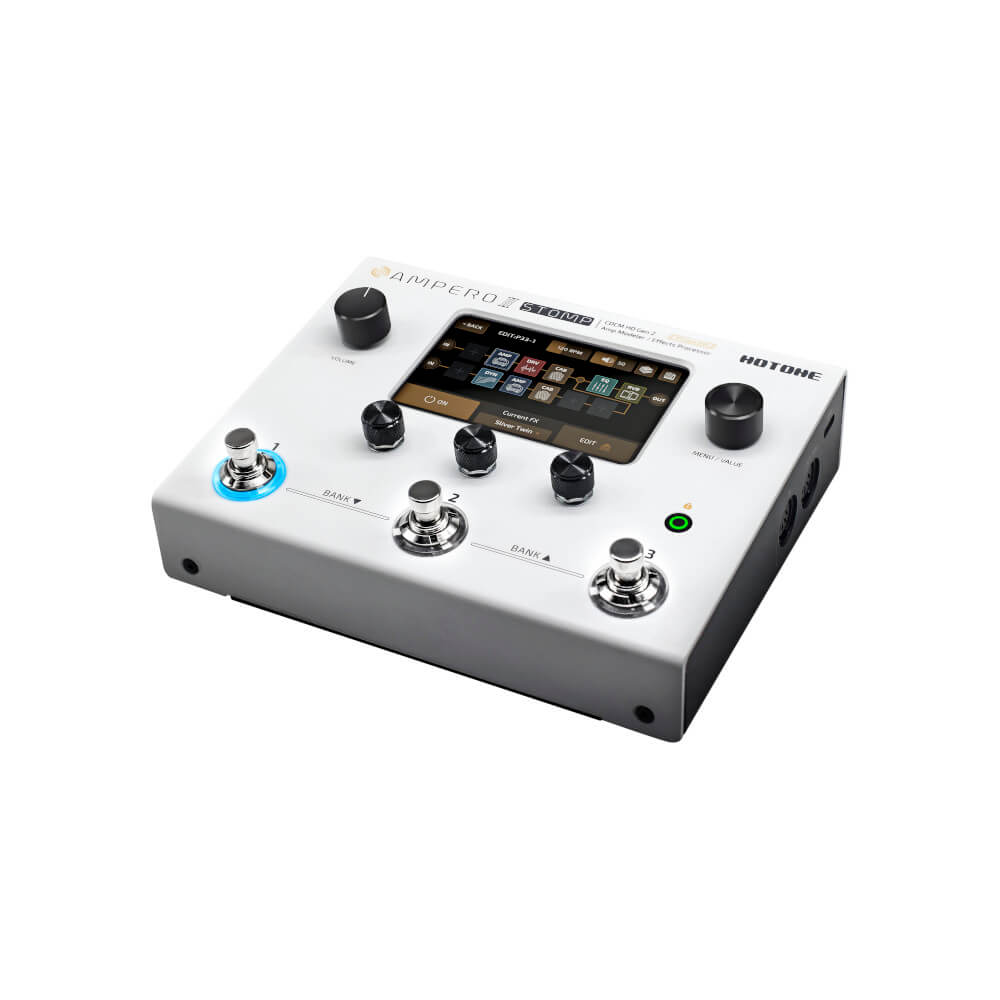

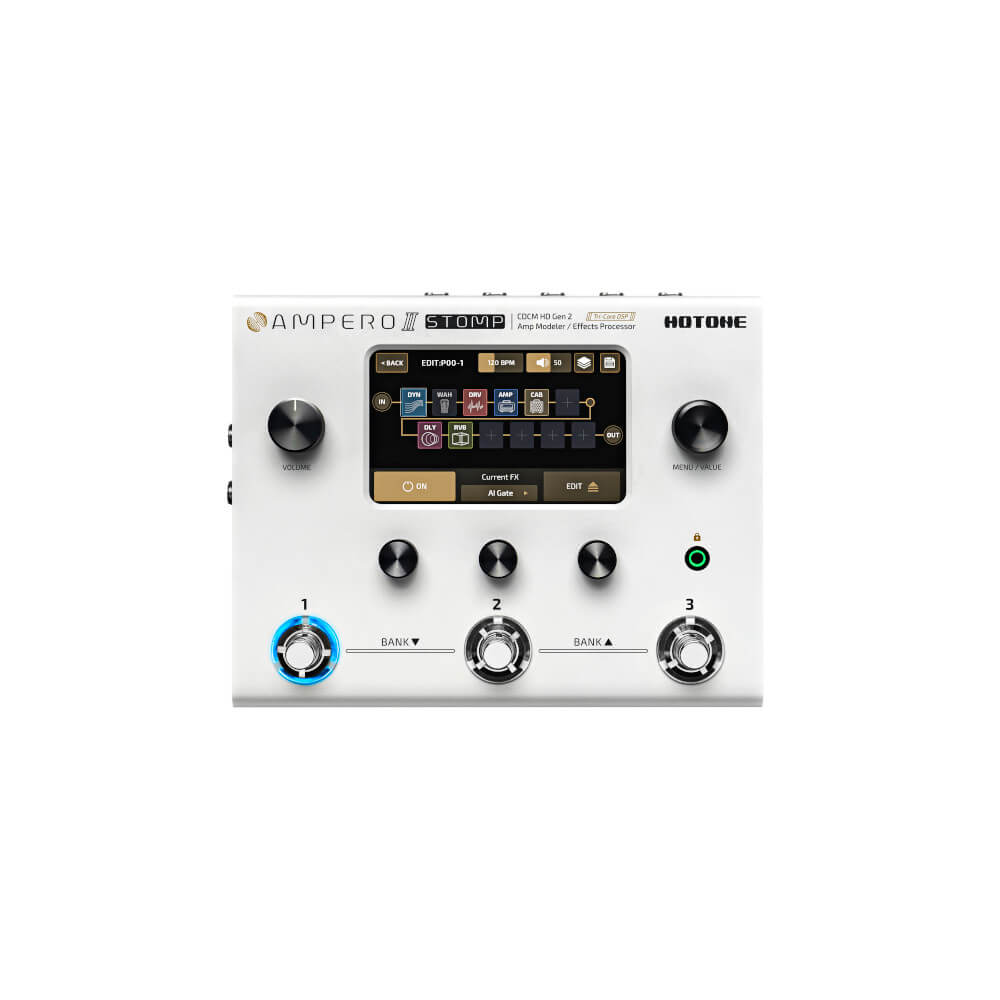

• 4-inch 800 x 480 dynamic touchscreen for intuitive control
• Highly customizable DUAL effect chain with multiple serial/parallel signal routing: add ANY FX module to the effect chain/ up to 12 simultaneous FX modules

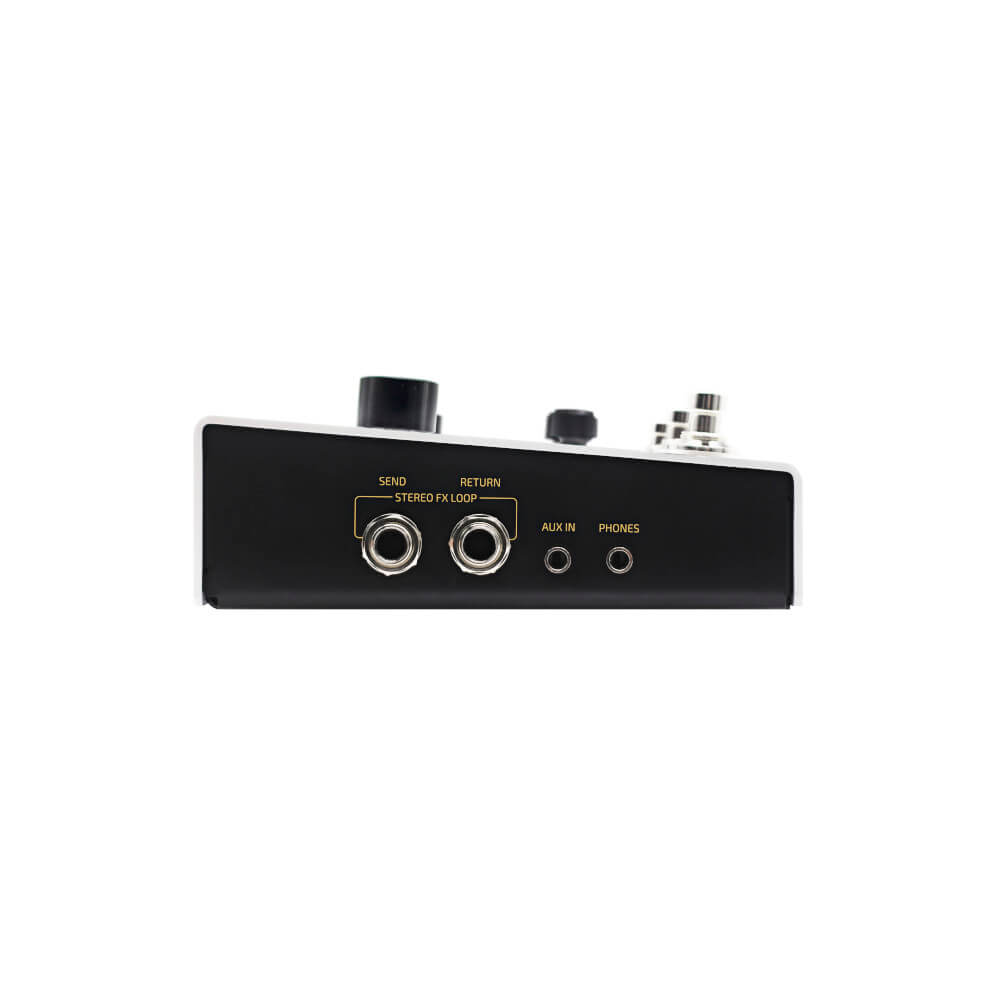

• Stereo I/O + stereo FX Loop jacks
• Dedicated IR loader module with 3rd party IR support/50 custom IR slots/2048 IR sampling points
• USB port: upgrade firmware, load/edit/manage effects/IRs via free Mac/PC software/ use as an USB audio interface
• 8-in/8-out USB audio interface
• Re-amp function
• 300 presets
• Built-in stereo looper w. max. 60 secs. recording time + undo/redo function
• 3 assignable footswitches with halo LEDs
• MIDI I/O jacks and EXP/CTRL jack for expanded controls
• Pedalboard-friendly/road-ready, light-weight aluminum chassis

Specifications:

• Effects Digital Audio Signal Processing
• 24-bit depth, 44.1kHz sample rate
• Frequency Response: 20Hz – 20kHz ± 1dB
• Dynamic Range: Max. 127dB (digital to analog)
• Effects: 460 (incl. global EQ)
• No. of Effect Modules: 16
• Effects Slots: Total of 12 simultaneous effects slots
• Patches: 300
• Looper Time: Stereo 60 seconds

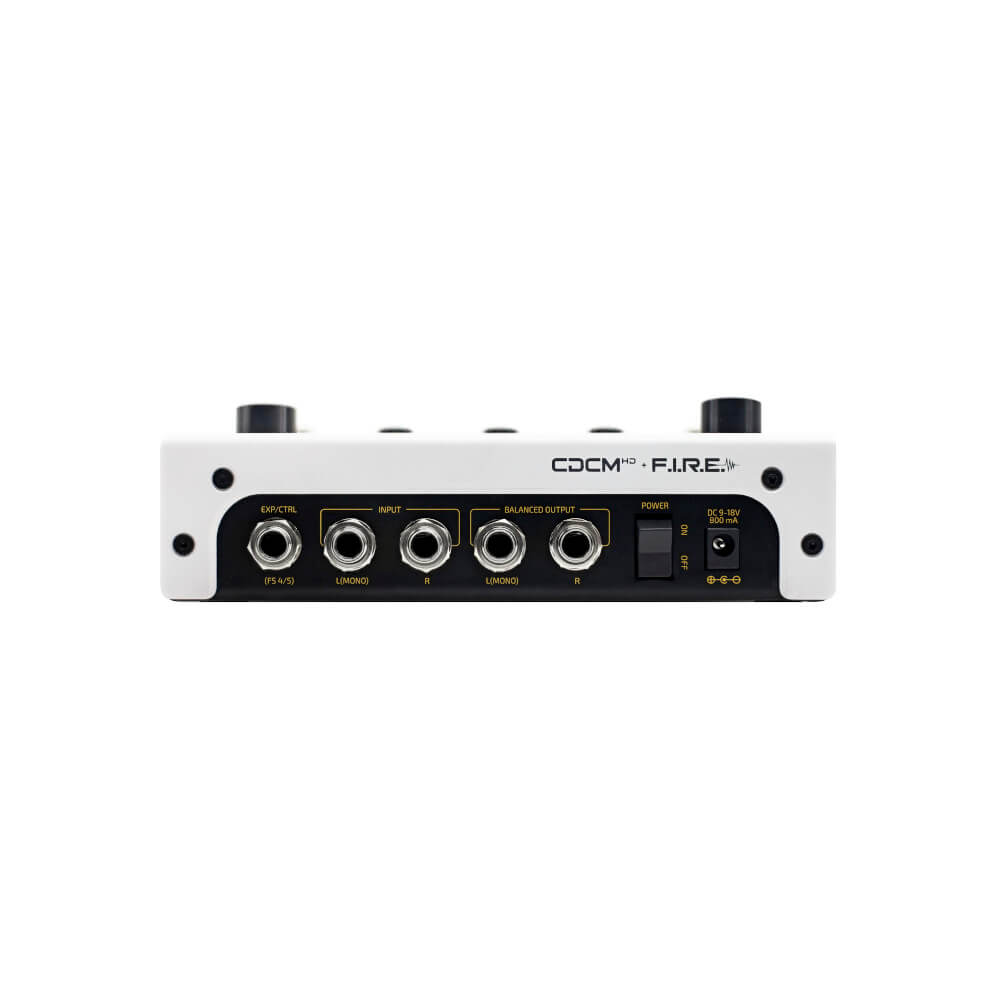

Inputs

• Two 1/4″ Tip Sleeve (TS) instrument jacks with individual input mode selector
• One 1/8″ Stereo Auxiliary In (Aux In) jack
• One 1/4″ Tip Ring Sleeve (TRS) expression pedal/momentary footswitch input (EXP/CTRL) jack
• One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop return jack
• One Standard 5 pin MIDI input jack

Outputs

• Two 1/4″ Tip Ring Sleeve (TRS) balanced stereo output jacks
• One 1/4″ Tip Ring Sleeve (TRS) unbalanced stereo FX loop send jack
• One 1/8″ stereo headphones output jack
• One standard 5 pin MIDI output jack

Input Impedance

• Input: E.GT: 1MΩ; A.GT: 4.7MΩ; LINE: 10kΩ
• FX Loop Return: 100kΩ
• Aux In: 10kΩ

Output Impedance

• Output: 1kΩ
• FX Loop Send: 1kΩ
• Headphones: 47Ω

Input Level

• Input: -17.78dBu (Nominal); 14.5dBu (Max)
• FX Loop Return: -17.78dBu (Nominal); 14.5dBu (Max)
• Aux In: -17.78dBu (Nominal); 20dBu (Max)

Output Level

• Output: -11.76dBu (Nominal); 26.25dBu (Max)
• FX Loop Send: -17.78dBu (Nominal); 14.5dBu (Max)
• Headphones: -7.4dBu (Nominal); 18.3dBu (Max)

Operation & Access

• Screen
• 4″ 800 x 480 Color Dynamic Display Touch Screen

USB Port

• USB 2.0 Type-C port, supports USB Audio 2.0

Impulse Response/IR processing

• Supports 24-bit/44.1kHz Mono WAV files, 1024 and 2048 points; Supports up to 50 user IRs

Power Requirements

• 9-18V DC Center Negative
• Current Consumption
• 800mA Max (9V DC)

Dimensions

• 185mm(W) × 145mm(D) × 58mm(H)

Weight

• 1050g
